Hello again, readers and bots. I've finally got around to updating my keyboard page with some more exciting pictures and information. You will find a variety of similar and not-so-similar 'boards, now with some clarification of their original intended purpose.

Made on the 1397003, updates on the 8125460 and 1391406.
Date: 2010-02-05 [5th February 2010]
Mail to dw_junon XT/AT this domain.

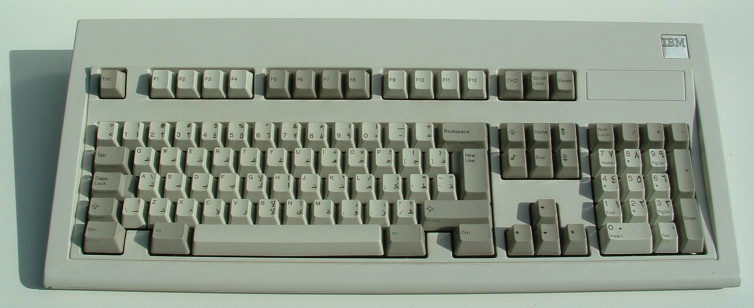

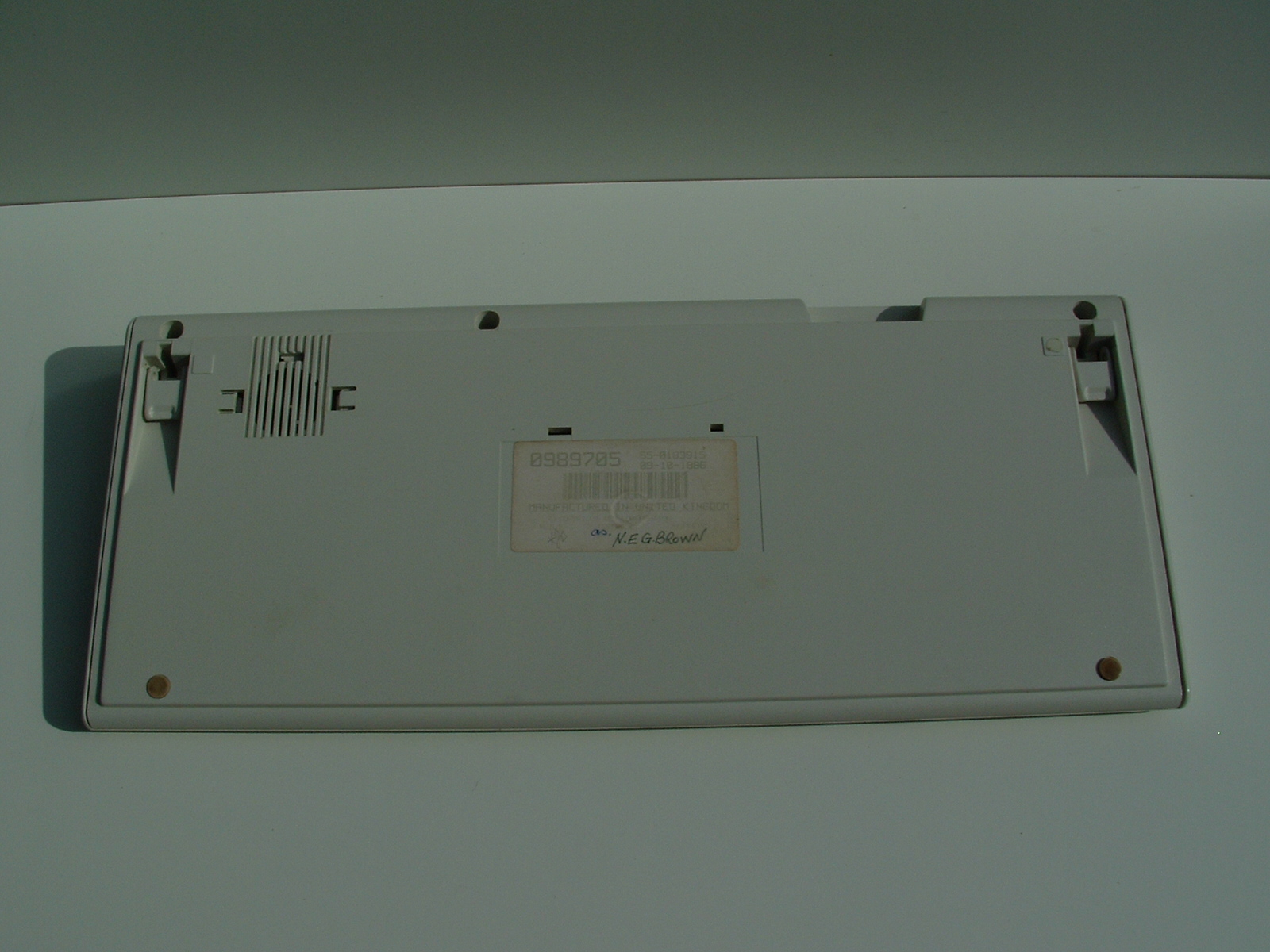

IBM Part Number 0989705

IBM P/N 0989705

102 key Arabic for XT and AT Personal Computers
Membrane buckling spring
Plant Code - Serial Number: 55-0183915   Date: 09-10-1986 [9th October 1986]
Manufactured in United Kingdom   Copyright IBM Corporation

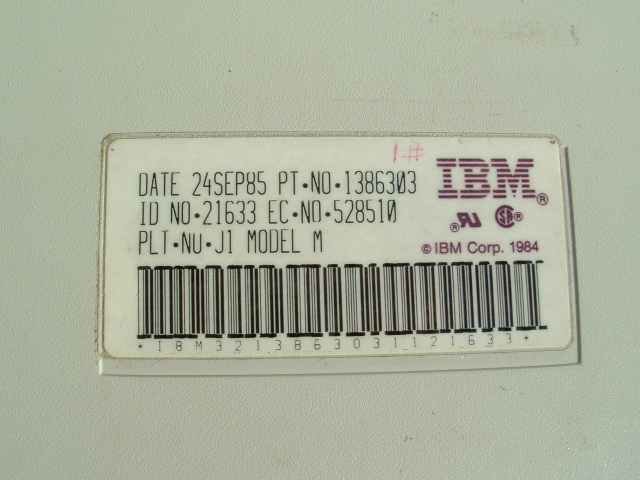

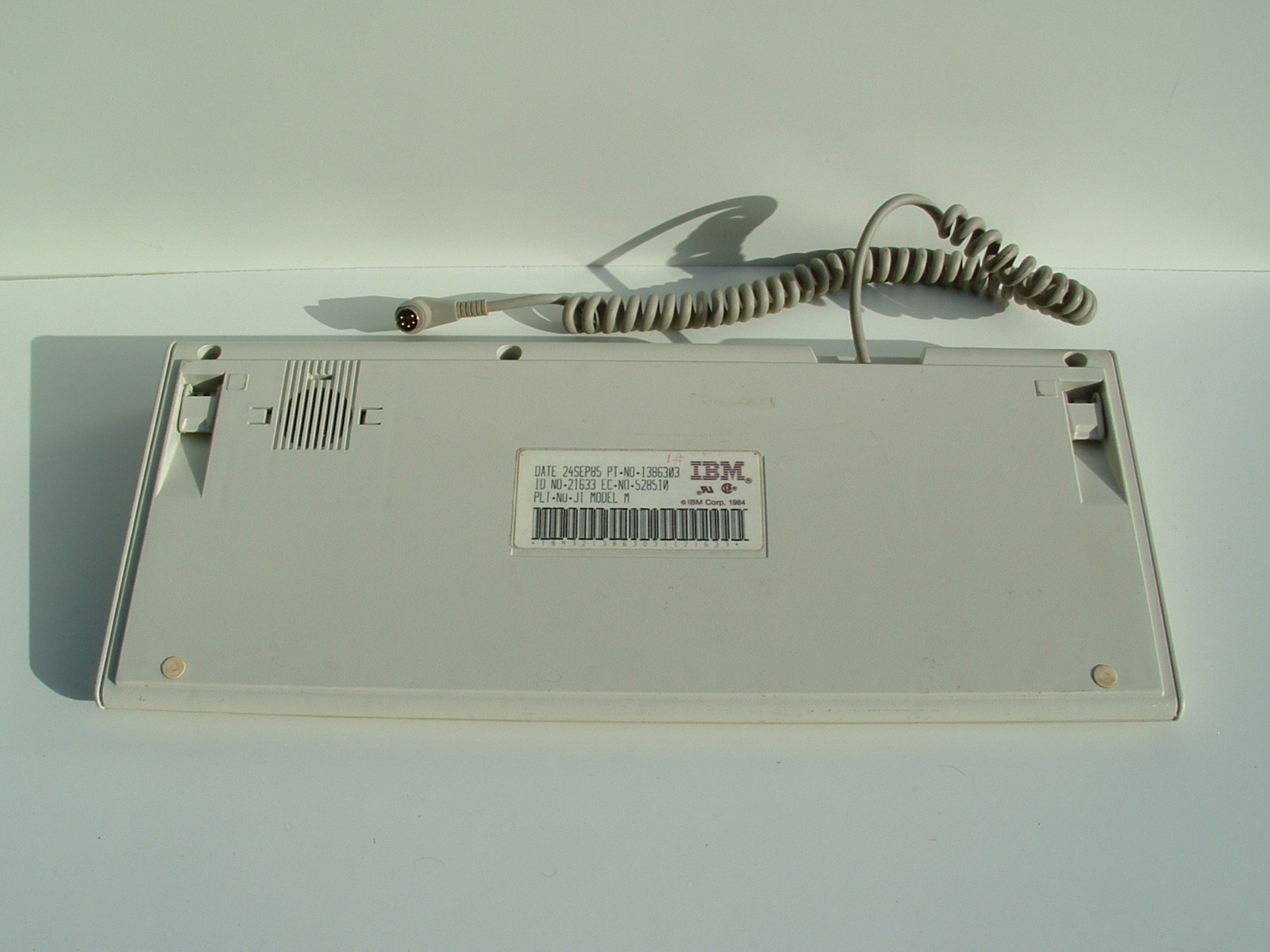

IBM Part Number 1386303

IBM P/N 1386303

101 key US ASCII-style for 3161 Display Station [terminal]
Membrane buckling spring
Model: M   ID NO: 21633   Plant Number: J1   Date: 24SEP85 [24th September 1985]
Copyright IBM Corp. 1984

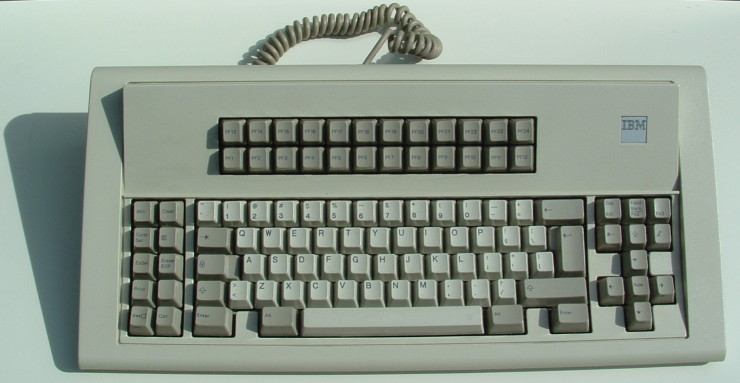

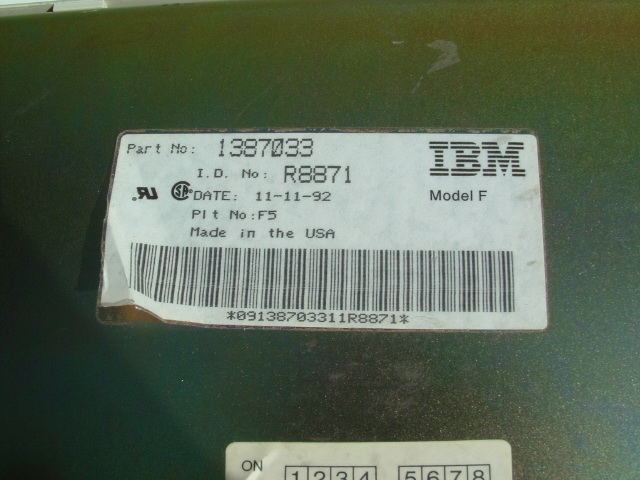

IBM Part Number 1387033

IBM P/N 1387033

104 key 3270-style for 3290 Display Station [terminal] with 19" orange plasma display
Capacitive buckling spring
Model: F   ID Number: R8871   Plant Number: F5   Date: 11-11-1992 [11th November 1992]
Made in the USA

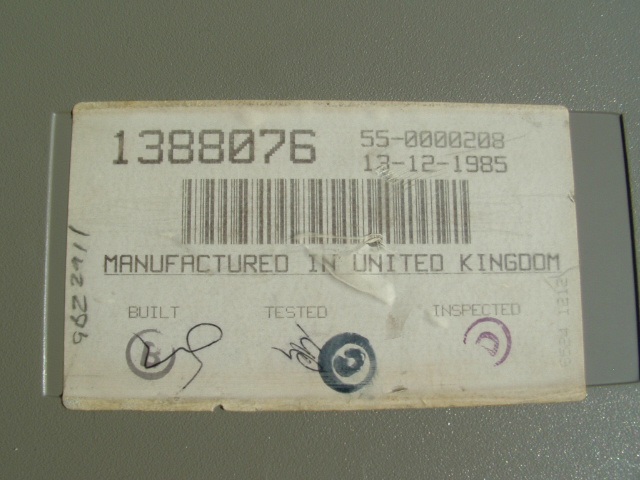

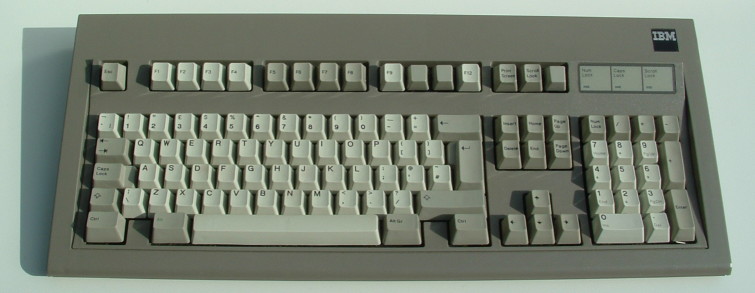

IBM Part Number 1388076

IBM P/N 1388076

102 key UK for 7531 Industrial Computer (ruggedised version of PC/AT)
Membrane buckling spring
Plant Code - Serial Number: 55-0000208   Date: 13-12-1985 [13th December 1985]
Manufactured in United Kingdom

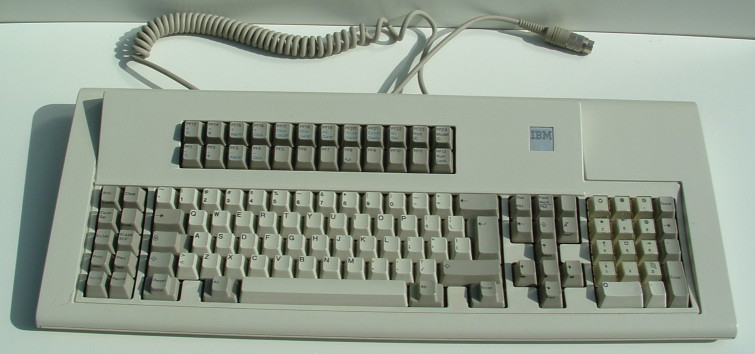

IBM Part Number 1389260

IBM P/N 1389260

122 key 3270-style for 3179 Display Station [terminal], with clear keycaps and paper inserts for custom application with 3180 Display Station
Membrane buckling spring
Model: M   S/N Number: 1029226   Plant Number: F1   Date: 19NOV1986 [19th November 1986]
Copyright IBM Corp. 1985

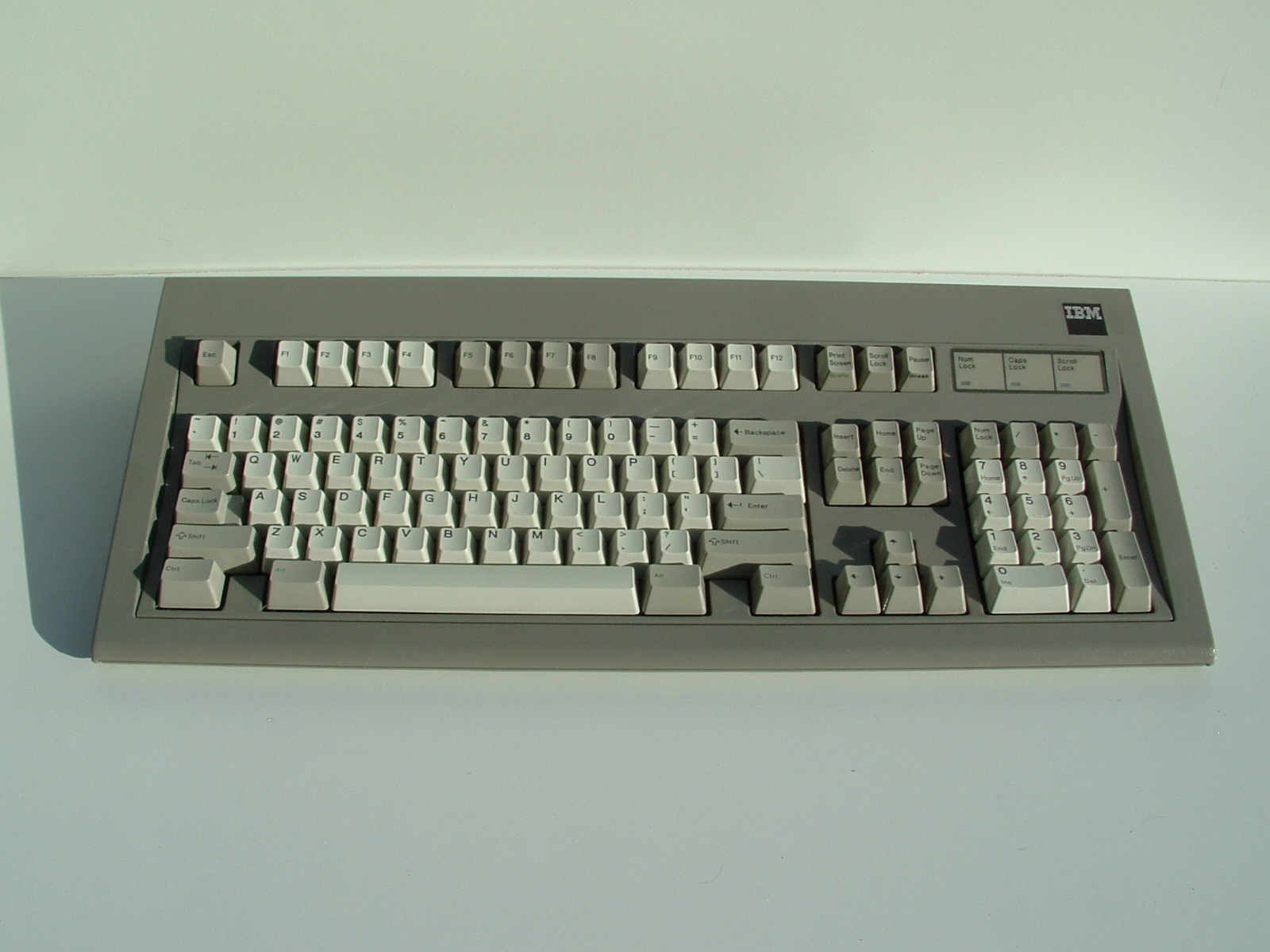

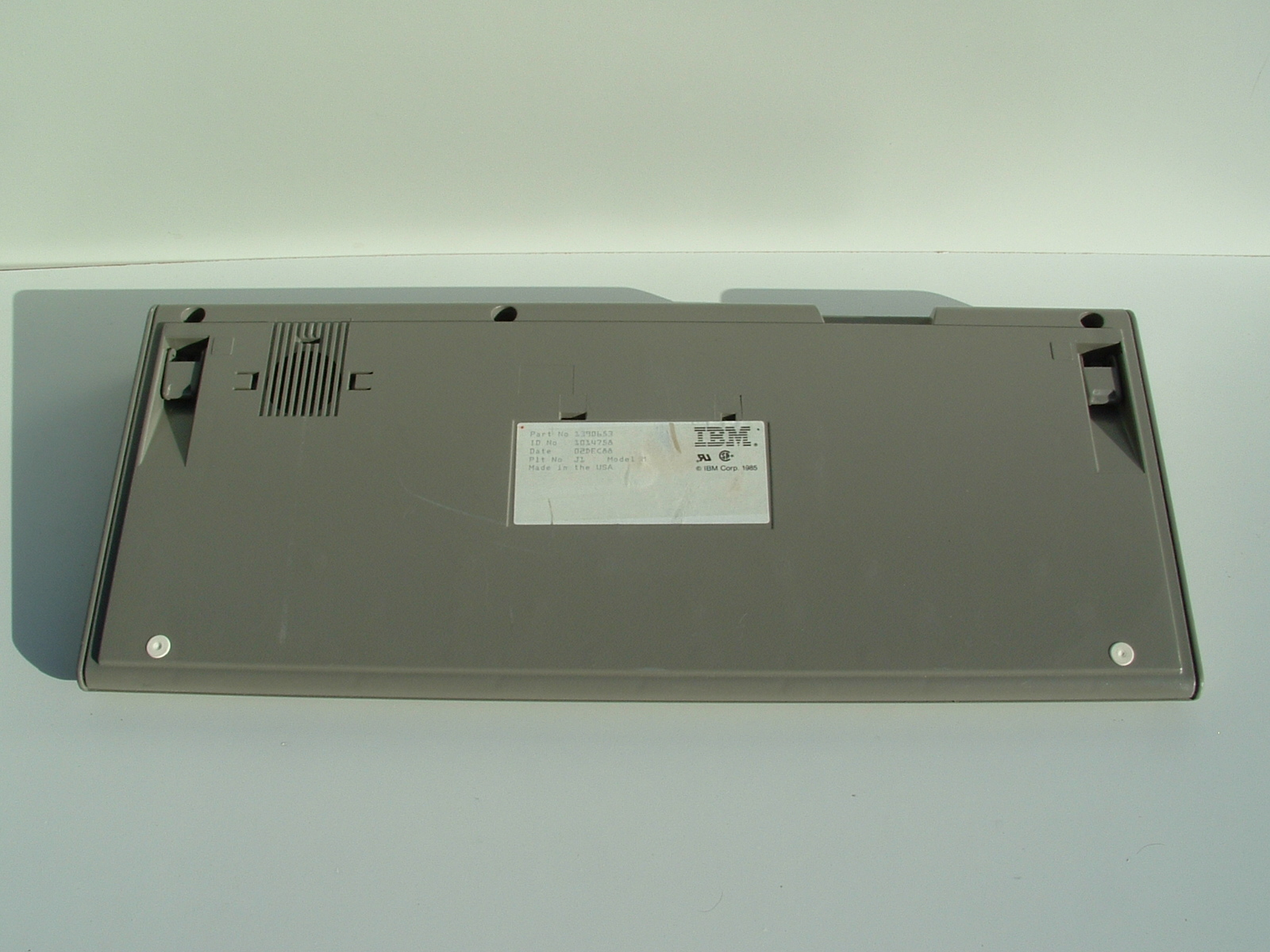

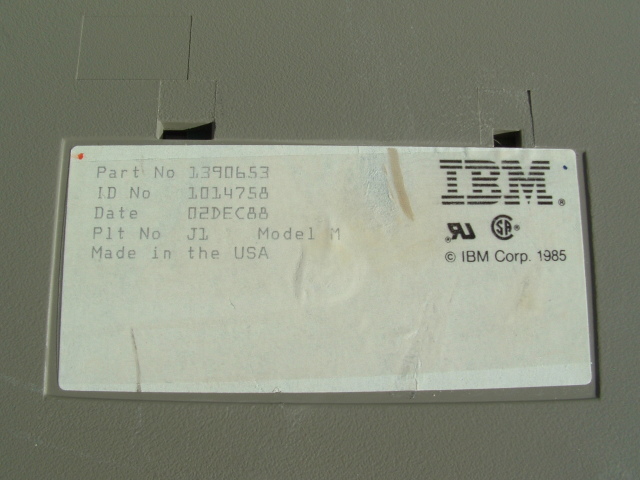

IBM Part Number 1390653

IBM P/N 1390653

101 key US for 7552 Industrial Computer
Membrane buckling spring
Model: M   ID No: 1014758   Plant Number: J1   Date: 02DEC88 [2nd December 1988]
Made in the USA   Copyright IBM Corp. 1985

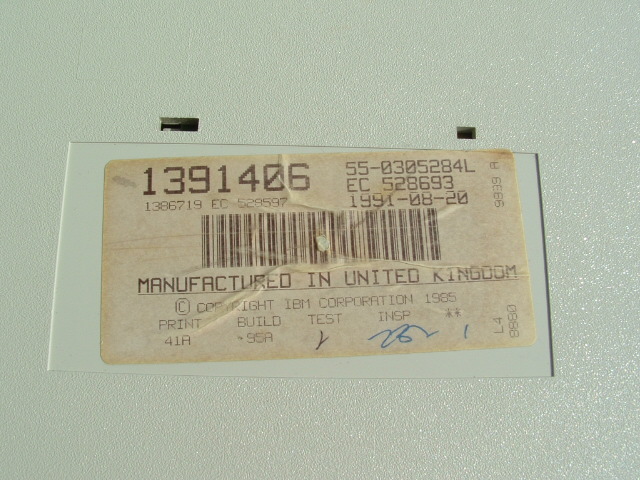

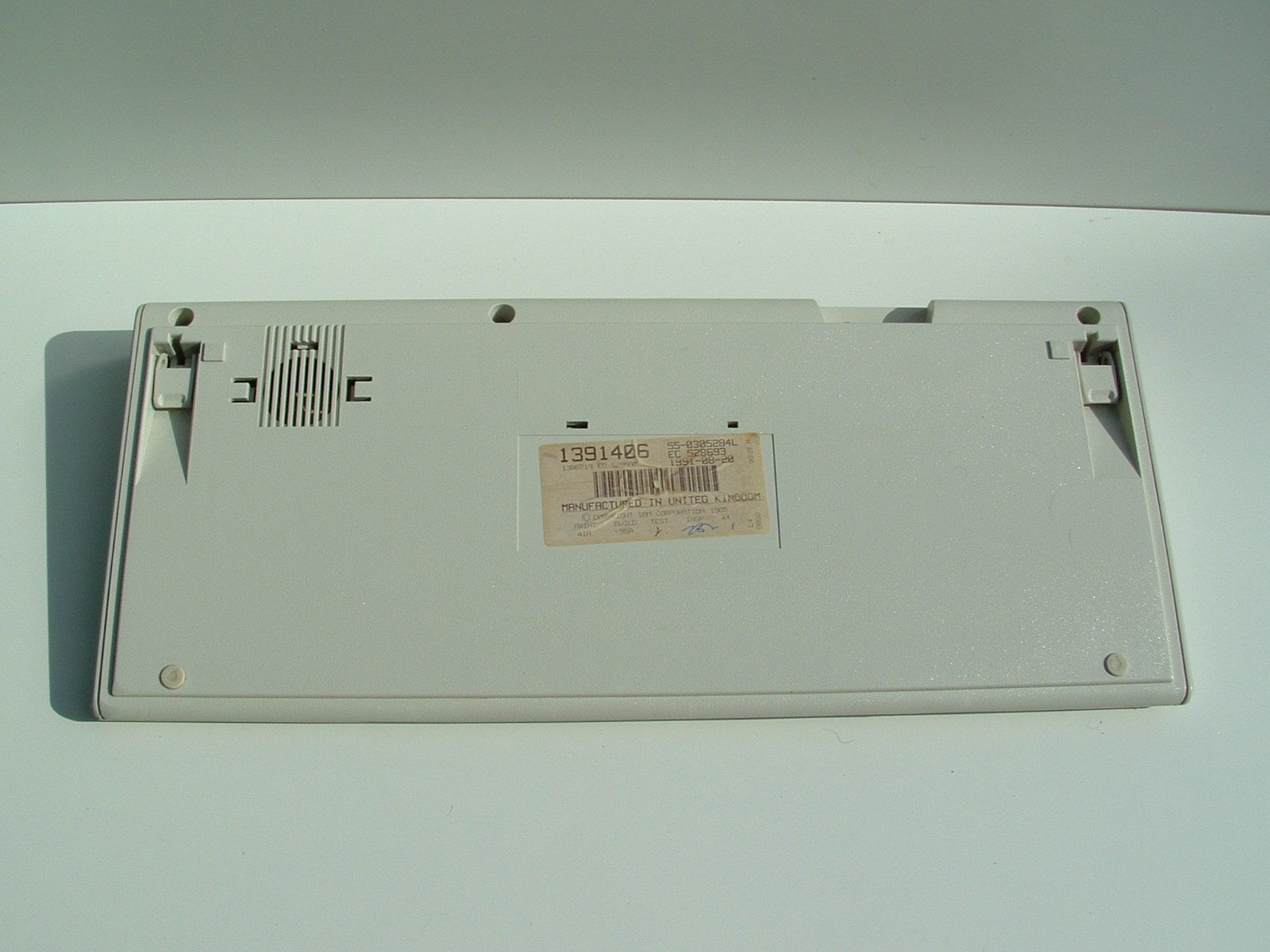

IBM Part Number 1391406

IBM P/N 391406

102 key UK for Personal System/2 [PS/2] computers
Membrane buckling spring
Plant Code - Serial Number: 55-0305284L   Date: 1991-08-20 [20th August 1991]
Manufactured in United Kingdom   Copyright IBM Corporation 1985

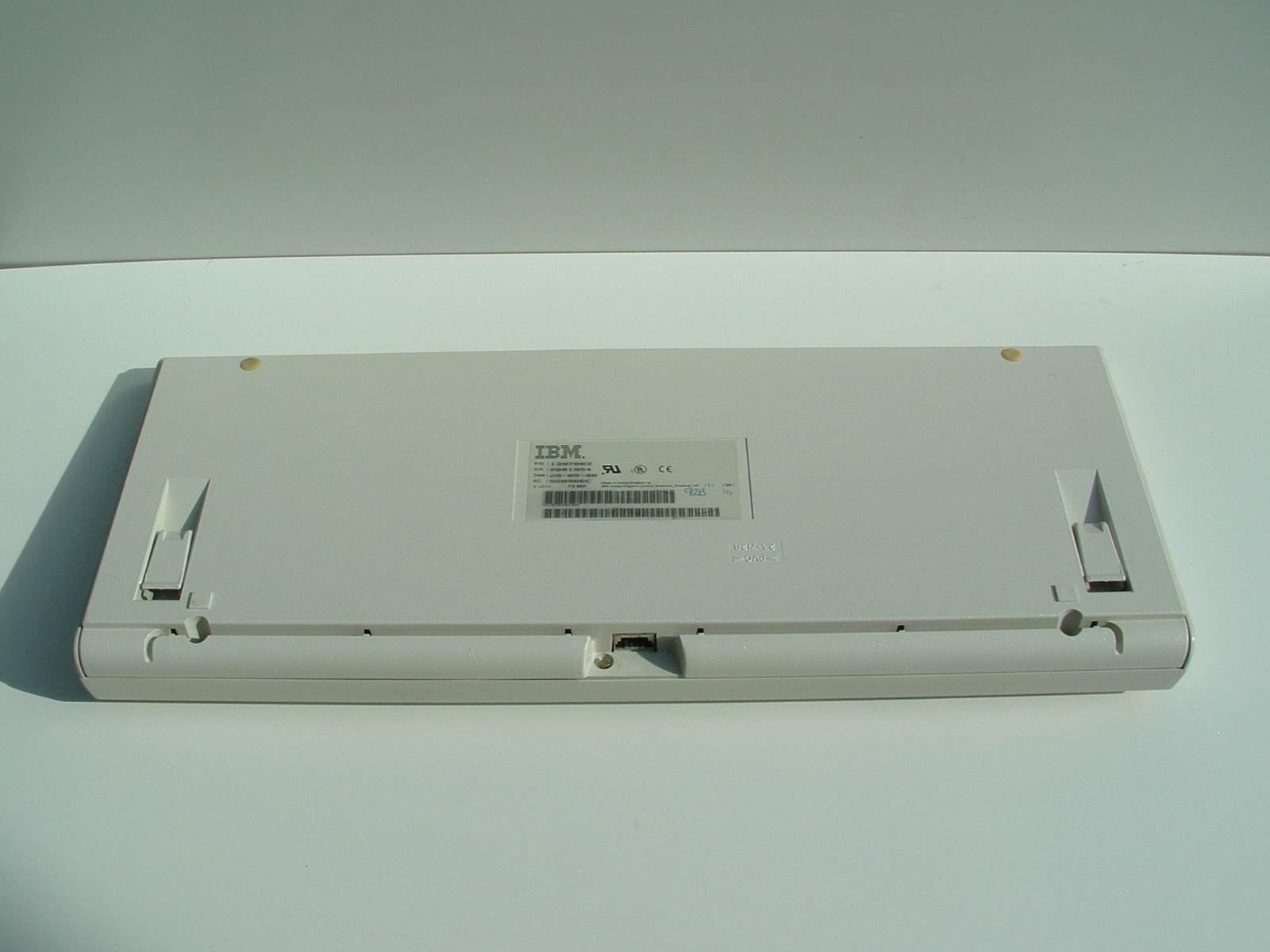

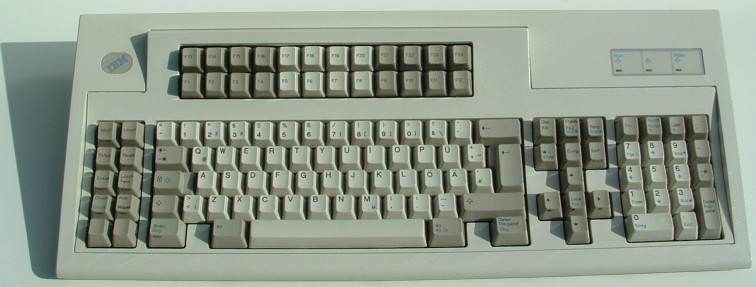

IBM Part Number 1397003

IBM P/N 1397003

122 key 3270-style German terminal emulator for PS/2 and compatibles
Membrane buckling spring
Serial Number: 2001954   Date: 29-05-98 [29th May 1998]
Made in United Kingdom by IBM United Kingdom Limited, Greenock, Scotland, UK

IBM Part Number 1397681

IBM P/N 1397681

84 key US Space Saving Keyboard for Personal System/2 computers
Membrane buckling spring
Model: M   Field Replaceable Unit No: 1397685   Plant No: F7   I.D. No: 5054827   Date: 03-10-93 [3rd October 1993]
Made in the U S A

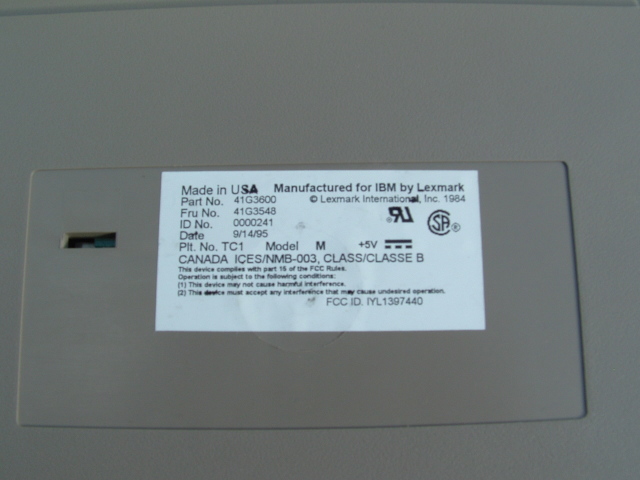

IBM Part Number 41G3600

IBM P/N 41G3600

84 key US Space Saving Keyboard for 7537, 7546, 7586, 7587, 7588, 7590 Industrial Computers
Membrane buckling spring
Model: M   Field Replaceable Unit No: 41G3548   Plant No: TC1   ID No: 0000241   Date: 9/14/95 [14th September 1995]
Made in U S A   Manufactured for IBM by Lexmark   Copyright Lexmark Internationl, Inc. 1984   FCC ID. IYL1397440

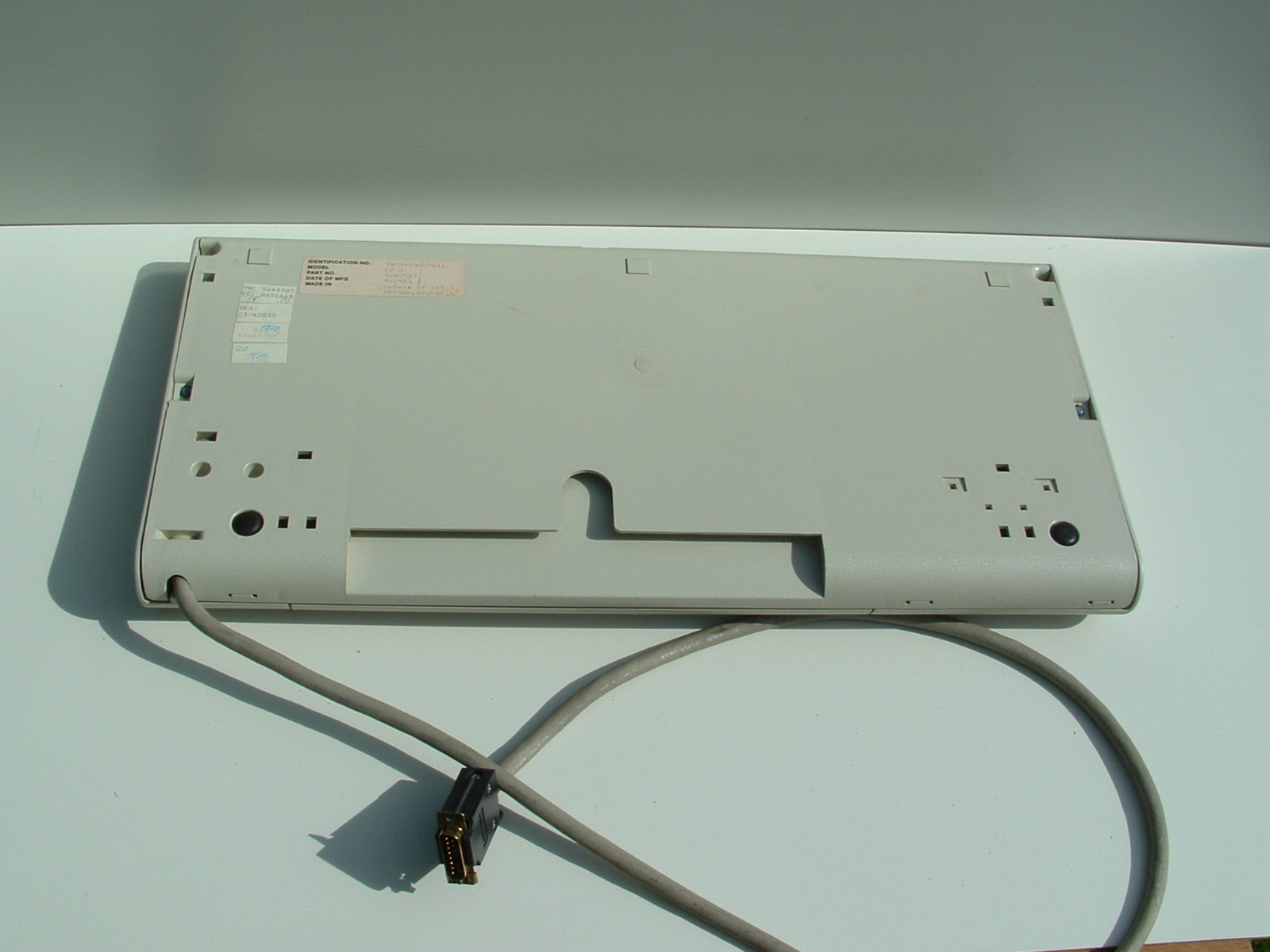

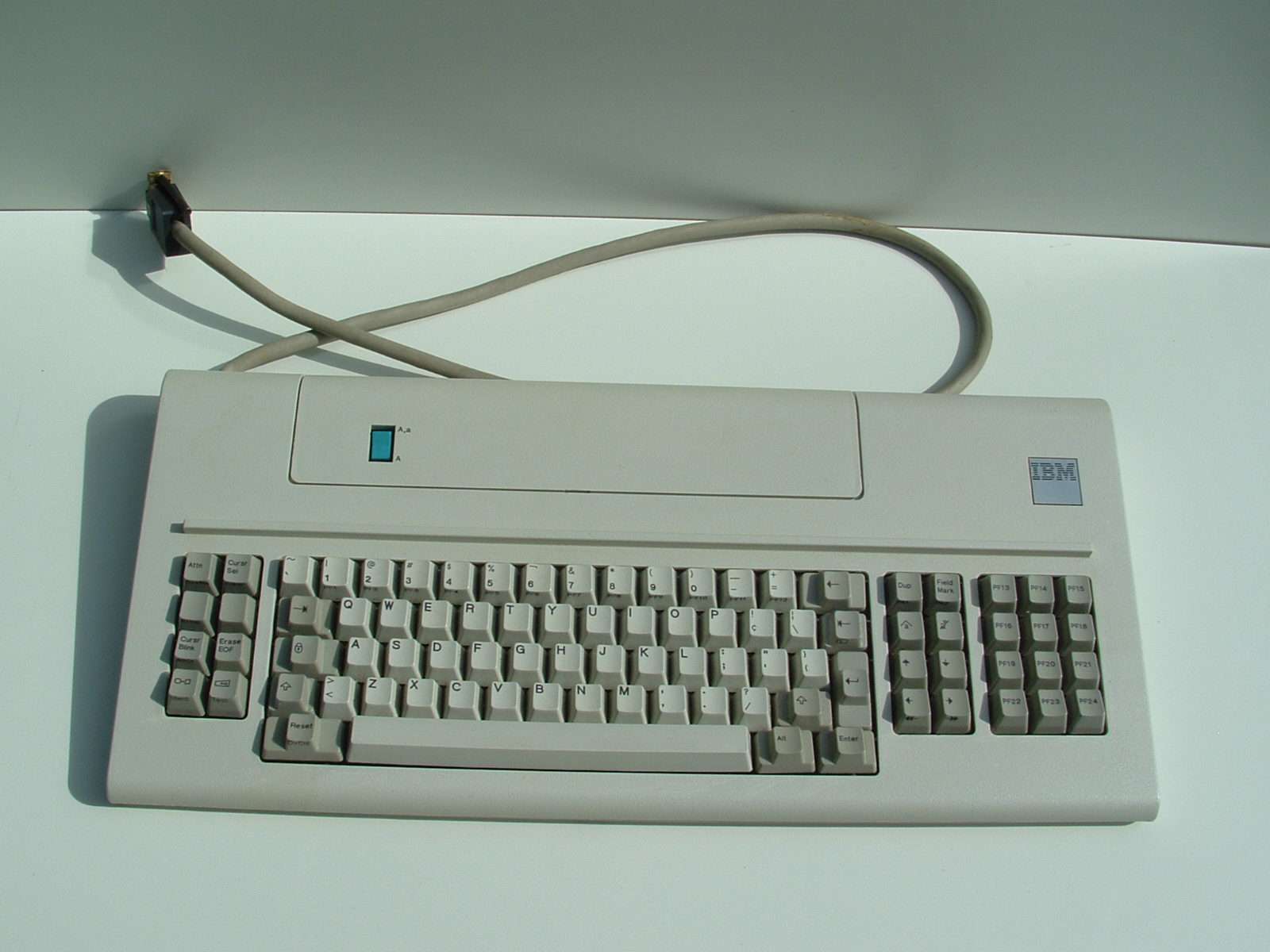

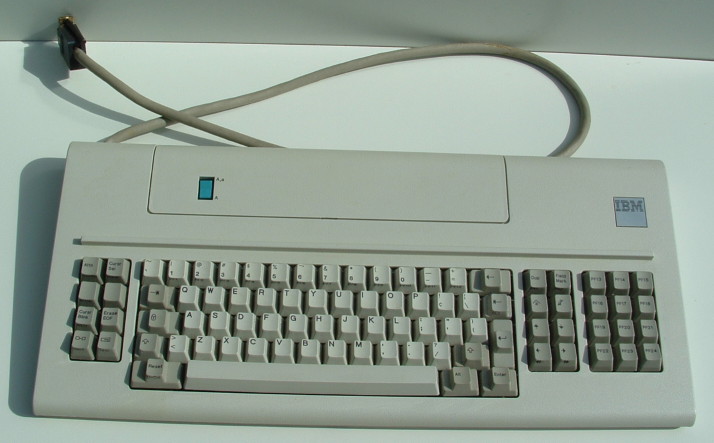

IBM Part Number 5640987

IBM P/N 5640987

87 key 3270-style for 3178 Display Station [terminal]
Capacitive buckling spring
Identification No (incorporating Plant Code and serial number): 340X-23-37616   Model of Display Station (not keyboard): C20   Date of Manufacture: 9-1983 [September 1983]
Made in U.S.A. by IBM   Armonk, NY, USA

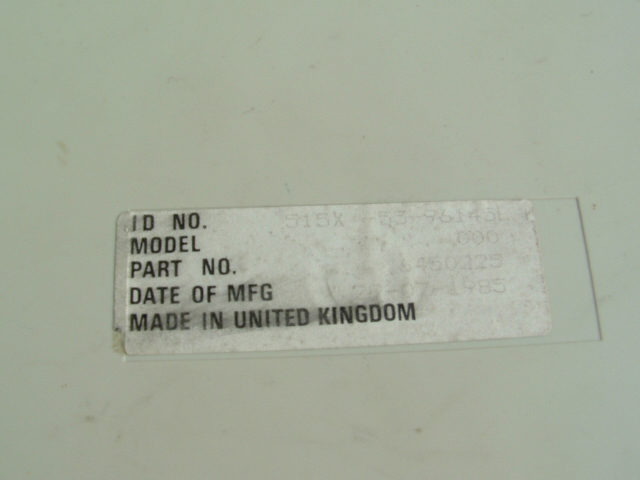

IBM Part Number 6540225

IBM P/N 6540225

84 key UK for AT Personal Computer
Capacitive buckling spring
Identification No (incorporating Plant Code and serial number): 515X-53-96145L   Model of System Unit (not keyboard): 000   Date: 29-07-1985 [29th July 1985]
Made in United Kingdom

IBM Part Number 71G4643

IBM P/N 71G4643

102 key UK for Personal System/2 and compatibles - uses rubber dome acutators instead of buckling spring assemblies

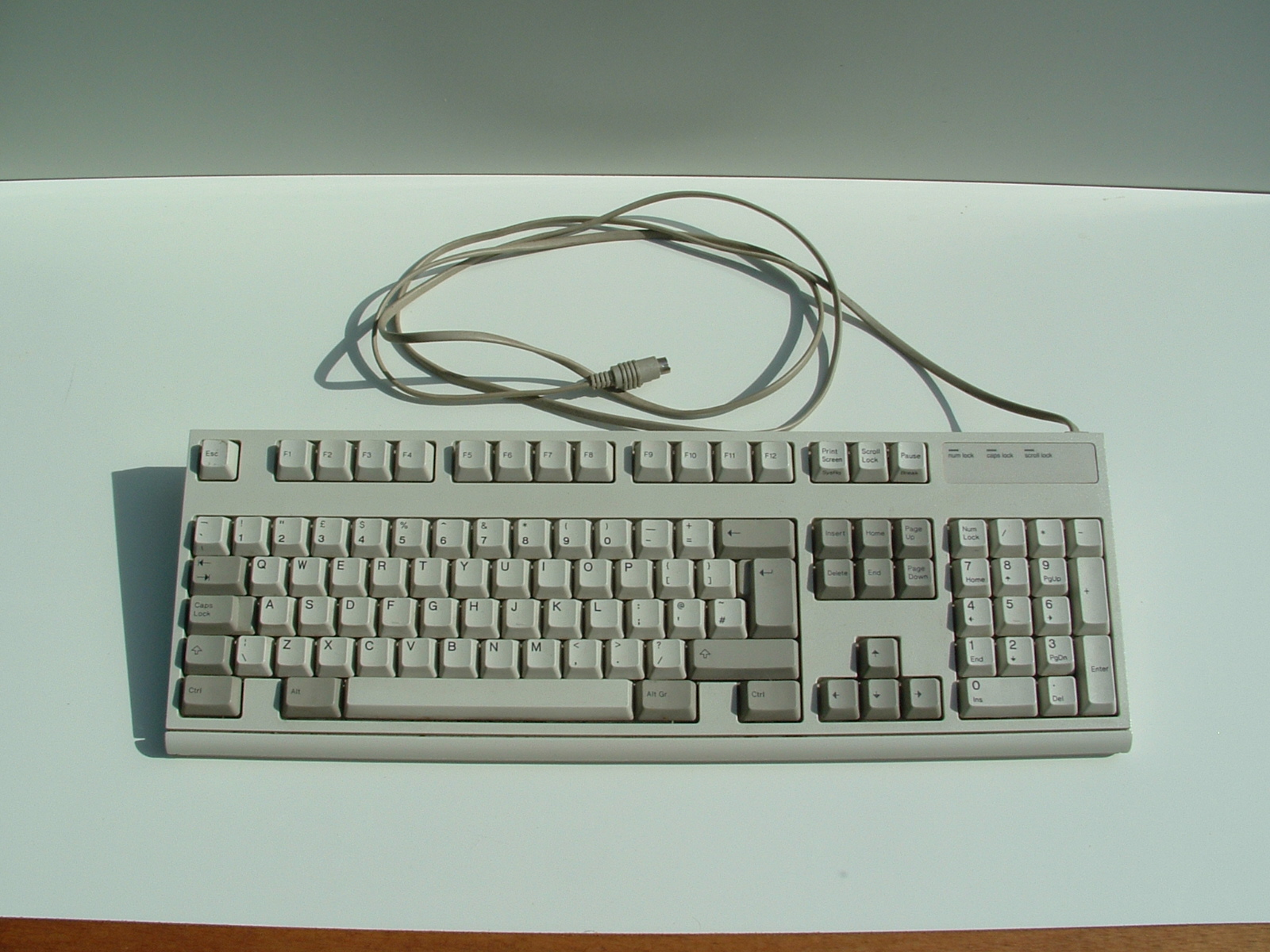

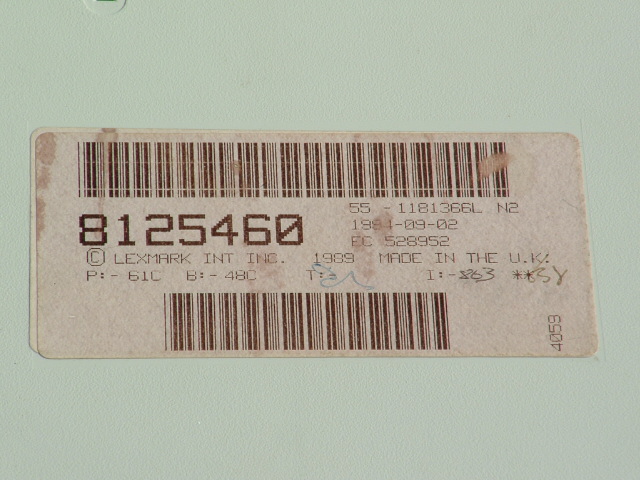

Lexmark/IBM Part Number 8125460

Lexmark/IBM P/N 8125460

102 key UK for 3153 Display Station - PS/2 compatible
Membrane buckling spring
Plant Code/Serial Number: 55-1181366L   Model: N2   Date: 02-09-1994 [2nd September 1994]
Copyright Lexmark Int Inc. 1989 Made in the U.K.
